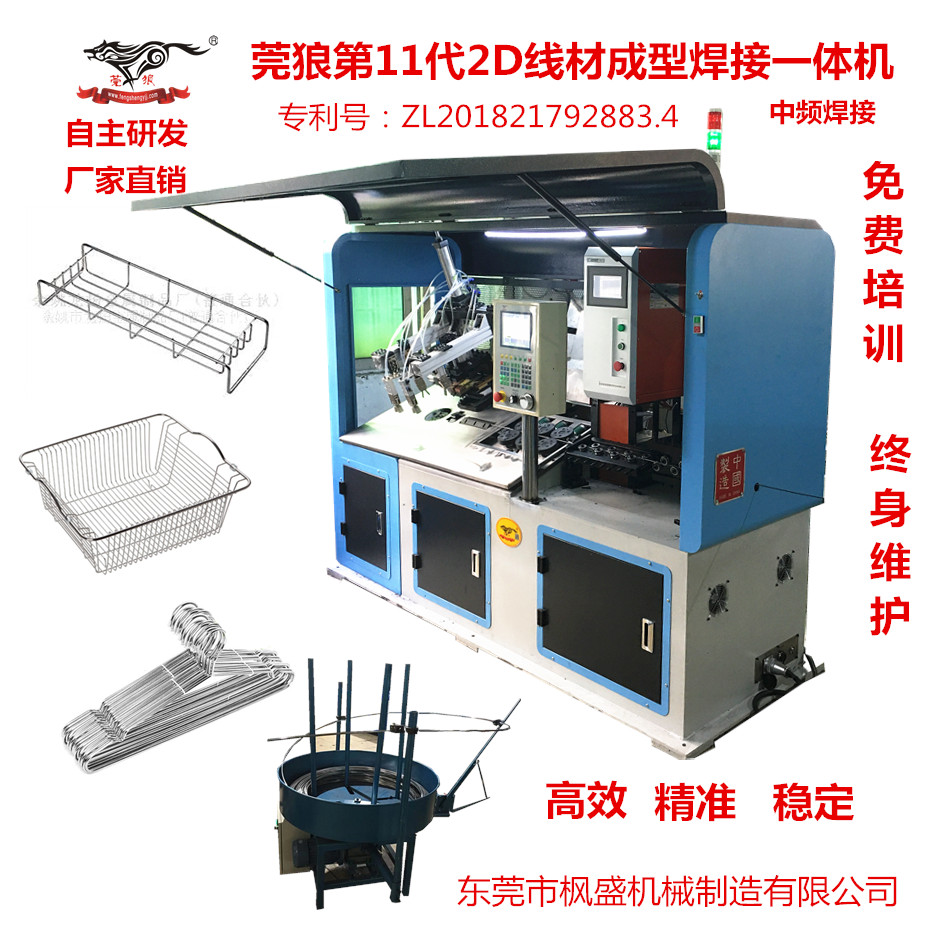

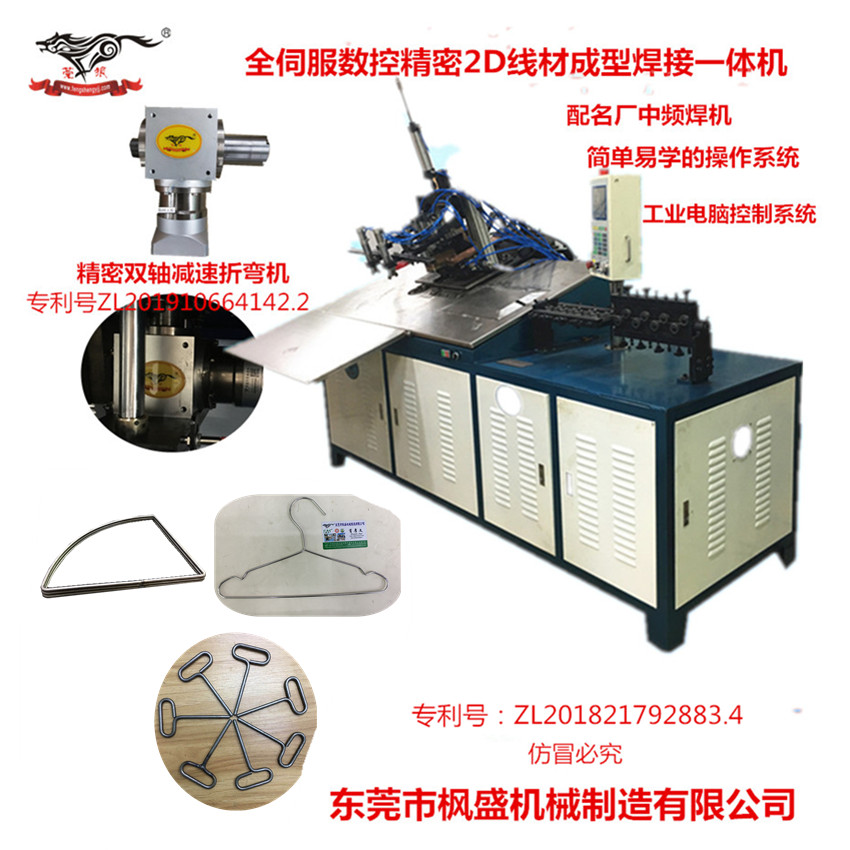

數控2D高速線材成型雙面氬弧焊一體機

咨詢熱線：18607697148

產品詳細

-

一、 設備型號及參數：(Equipment model and parameters:)

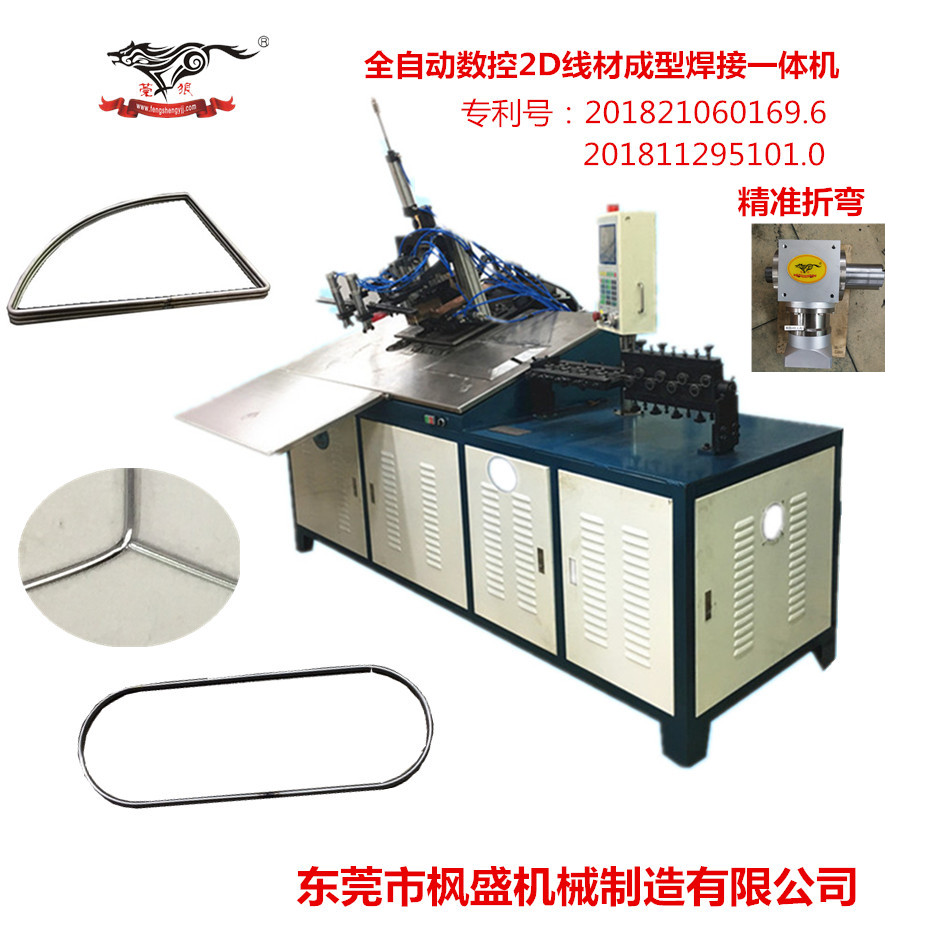

1、 設備名稱：全自動數控2D線材成型機(Equipment name: Full-automatic CNC 2D wire forming machine)

2、 設備型號(Equipment model)：FS-DG202-18-09

3、 加工線材直徑規格, 普通鐵線，（加大線徑可定制）

Available processing diameter：Φ2-Φ8mm Regular iron wire (Larger wire diameter can be customized)

4、 控制軸數：4軸   (Number of control shafts: 4)

5、 送線電機功率：4.5KW配160型1:5減速機(Power of wire feeding motor: 4.5kw, equipped with type 160  1:5 reducer)

6、 折彎電機功率：3.8KW配142型1:20減速機(Bending motor power: 3.8kw with type 142  1:20 reducer)

7、 內外模升降電機功率：0.75KW配90型1:10減速機(Motor power of inner-outer mold lifter: 0.75KW, equipped with type 90  1: 10 reducer)

8、 切刀電機功率：1.5KW配120型 1:10減速機(Cutter motor power: 1.5kw with type 120  1:10 reducer)

9、 最大送線速度：90米／分鐘,60米/分鐘（帶減速機）(Maximum wire feeding speed: 90m / min), 60m / min (with reducer)

10、 送線精度：9000mm±0.2/6000mm±0.2(帶減速機）（Wire feeding accuracy: 9000mm ± 0.2）/ 6000mm ± 0.2 (with reducer)

11、 電動送線架最大承重：0.5T-3T（大型放線架）（Maximum bearing capacity of electric wire feeder: 0.5T-3T (large-scale wire feeder)

12、 電動送線架外圓直徑：φ1010mm（Diameter of electric wire feeder’s circumcircle: φ 1010mm）

13、 電動送料架電機功率：1.5KW配WPWDK080# 1:60減速機（Motor power of the electric cradle : 1.5kw with wpwdk080 #  1:60 reducer）

14、 主機使用電壓：三相380V（Voltage of the main machine : three-phase 380V）

15、 主機器重量：900kg（Weight of the main machine :900kg）

16、 主機器尺寸：2500mm X 1650mm X 1800mm（長度X寬度X高度）（Measurement of the main machine : 2500mm x 1650mm x 1800mm ）(length x width x height)

17、 電動送料架重量：200Kg(Weight of the electric cradle: 200kg)

18、 電動送料架尺寸：1500mmX1500mmX940mm（長度X寬度X高度）(Measurement of the electric cradle: 1500mmx1500mmx940mm) (length x width x height)

二、 使用條件及說明：(Operation conditions and instructions):

1、 電源電流及電壓1秒種以上波動應保證在±5%以內，設備可以正常運行。(The power supply current and voltage fluctuation for more than one second shall be within ± 5%, under this circumstance, the equipment can operate normally).

2、 自動送料架與主機間隔距離2000mm以上。(The automatic cradle and the main machine shall be at least 2000mm apart).

3、 設備配備有USB接口，可實現數據讀取。(The device is equipped with USB interface for data reading)

4、 電腦操作系統可以接入互聯網，實現遠程控制和操作。生產效率及產量在人機界面有顯示，達到規定產量后設備可自動停機。(The computer operating system can be connected to the Internet for remote control and operation. The production efficiency and output are displayed on the human-machine interface, and the equipment can be automatically shut down after reaching the pre-set output).

三、 其他

1、 設備使用后齒輪及導軌滑塊要定期加潤滑油脂，周期7-60個工作日。(After the equipment is used, add lubricating grease to the gear, guide rail and slide block every  7- 60  working days)

A、設備價目表：(Equipment price list)

        B：配件品牌及產地：(Brand and origin of components):

C：易損件隨機配送清單：(Random distribution list of vulnerable parts)
